XOVR Location

Hey Nathan, everyone,

I have an interesting setup here and the method I'm going to use to align the system is one I dont use often so I'd like to see what others think.

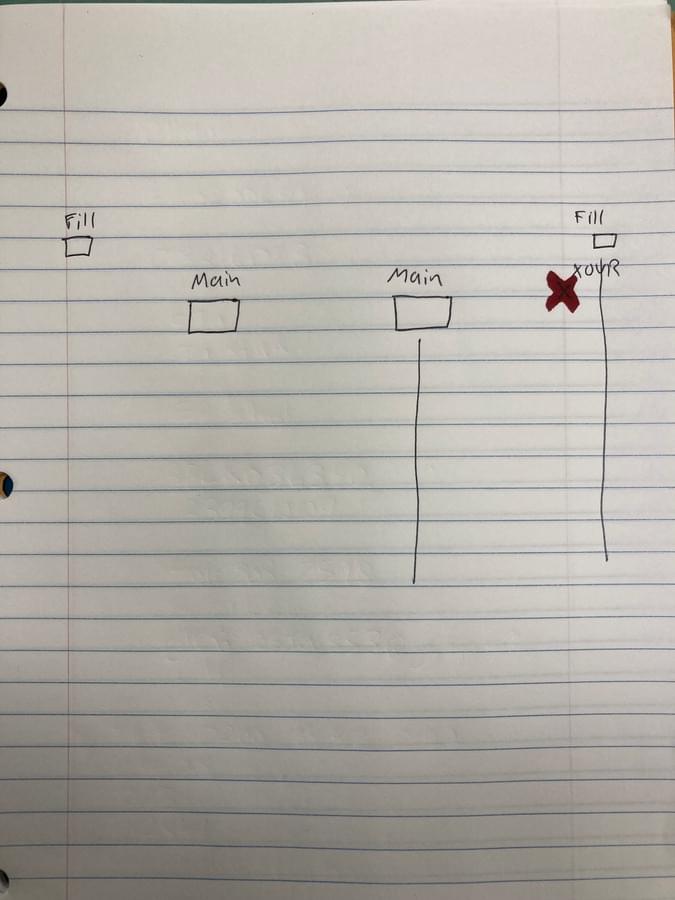

In the picture attached small fills on stands are placed next to the projector screens upstage of the mains to cover some tables.

This of course makes them time zero. The odd part is, since the mains are not aimed into their field of coverage and they dont shoot into the Mains field of coverage, the two sections (fills and mains) are almost isolated from eachother coverage wise. Because of leakage they do still need to be time aligned so would I be placing the spatial XOVR somewhere near the red X? I will have to hunt for where they most closely match in level and curve and align there. Then as you move from the custody of the mains, across and upstage, it hands off the coverage in time.

Hi Michael! Yeah, that is interesting. It does make you wonder, if there are no seats where there's overlap. Ah, but you said, "almost isolated." I see. If you're behind the mains then there's little to no HF there. Yeah, it will be interesting to walk around find the overlap. If those fills only make to the second row, then ONAXB far and XAB might be close to the same place.

I think the XOVR will be a little further downstage than my quick drawing here, I'll probably look to match the high end as best I can since both will be rolled off to some degree. The fills will throw a bit because they are on stands. Thanks for weighing in I think I'm on the right track here.
